Slide 5 of 23
Notes:

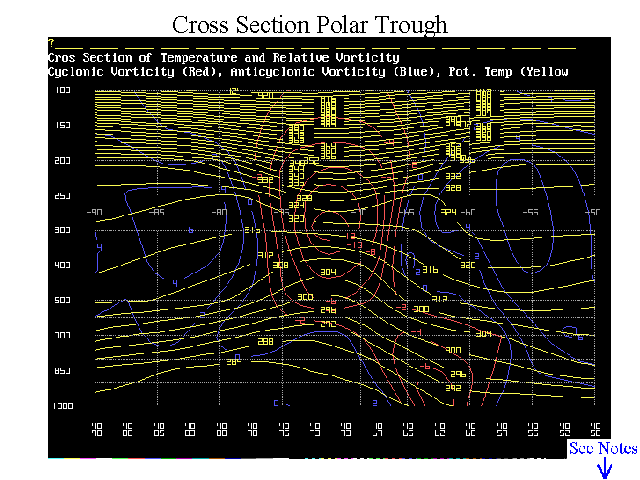

This is a cross section along 48W showing a cold core center along 73W (temperatures decrease towards the center of the trough). Cyclonic relative vorticity is shown in red. Notice how the cyclonic vorticity increases with height (becomes more negative) peaking around 300 hPa, and then decreases as the trough becomes warm core (stratosphere).
