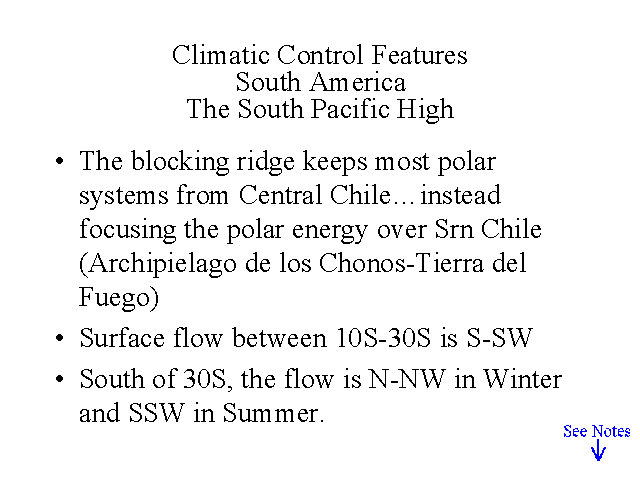

Slide 14 of 37
Notes:
Polar fronts are generally deflected southward under the South Pacific High. At upper levels the trough manages to slide over this high as the mid-upper level ridge crumbles. However, the surface reflection of the polar front is quite limited.
