Mike Davison |
|
HPC International Desks |
|
|
|
|
|
|

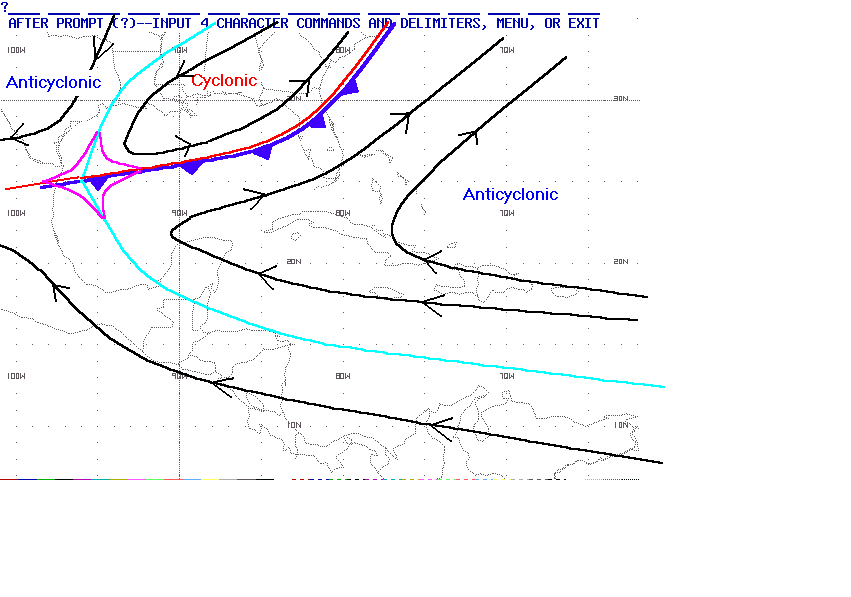

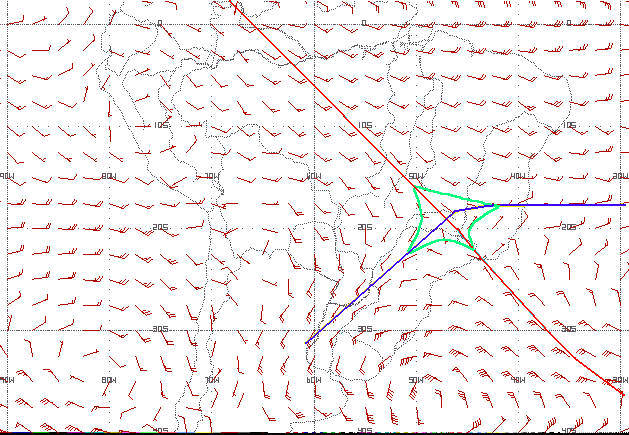

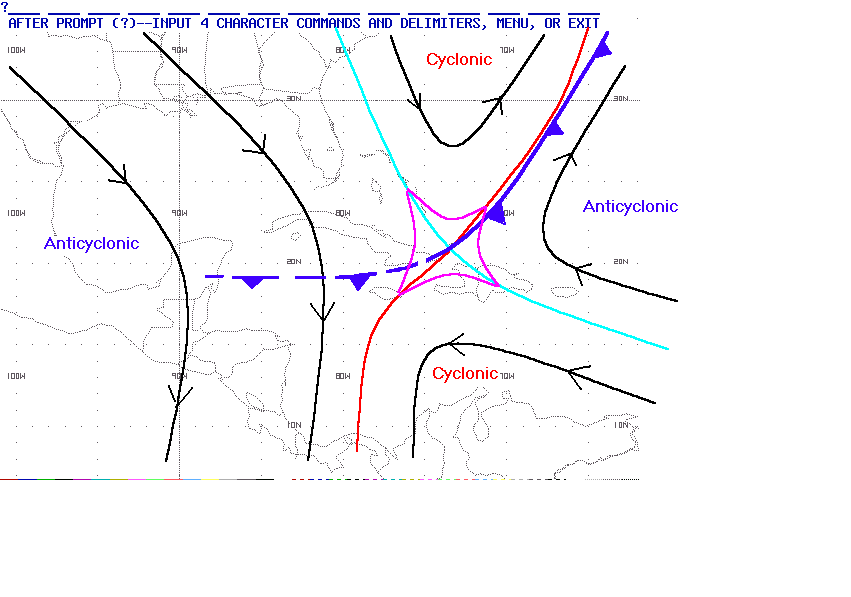

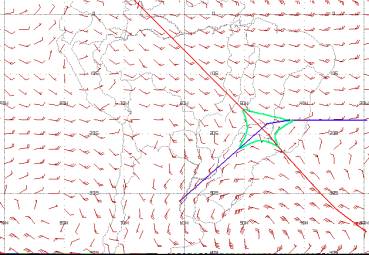

Shear Lines: are associated with wind shifts
(direction and speed). |
|
A line or narrow zone across which there is an
abrupt change in the horizontal wind component parallel to this line |
|
A line of maximum horizontal wind shear. |
|
An area of directional wind confluence along the
tail end of a surface front. |
|
Lacks the baroclinicity/density discontinuity of
surface fronts |
|

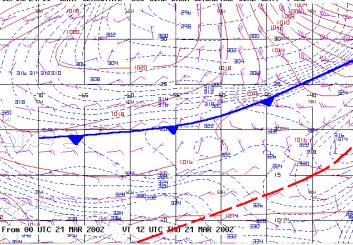

Fronts:
The interface or transition zone between two air masses of different
density. |
|
Density depends on temperature and moisture
content |
|

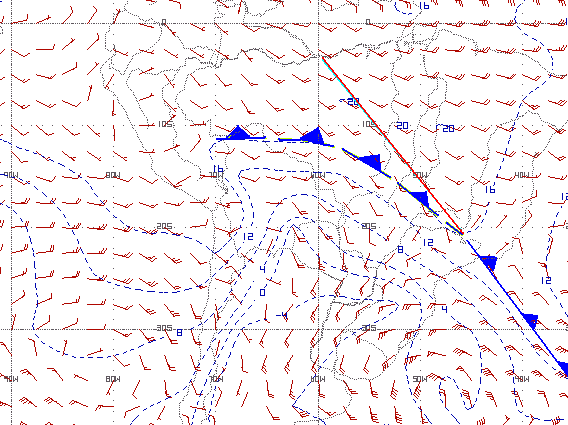

Fronts either lie along shear lines or can lag
behind them. |
|
|
|
|
|
|
|
|
|
|
|
|
We can express the divergence equation in a
simplified form, with two terms: |
|
Direction |
|
Speed |
|

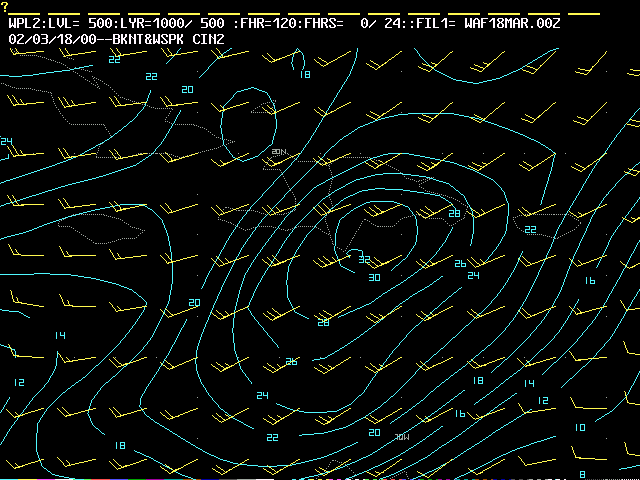

The direction and speed terms, in-turn, can be
expressed as directional/speed diffluence and confluence |
|
Confluence is not equal to Convergence |
|
Diffluence is not equal to Divergence |
|
|
|
|
|
Divergence/convergence calculations need to take
into account the direction and speed terms. |
|
This is done through objective analysis |
|

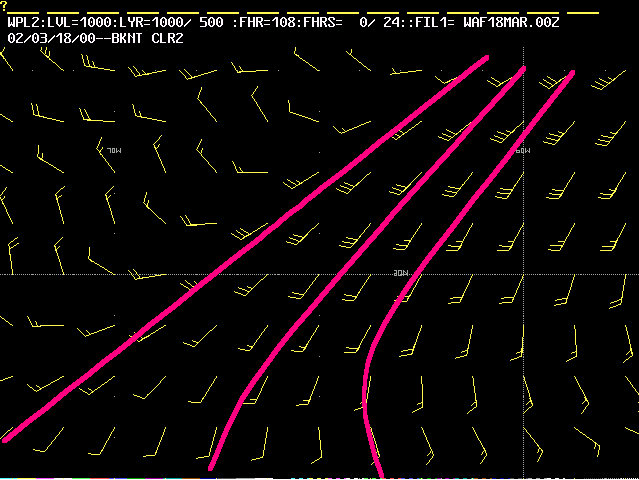

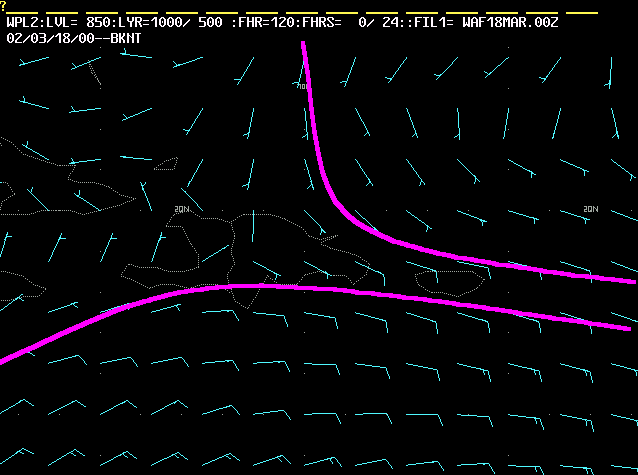

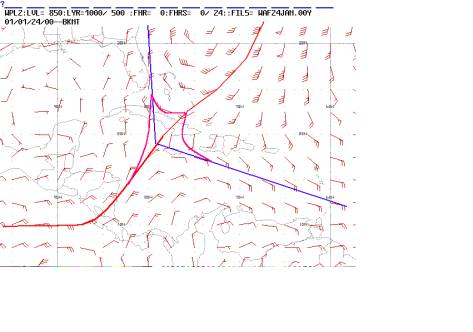

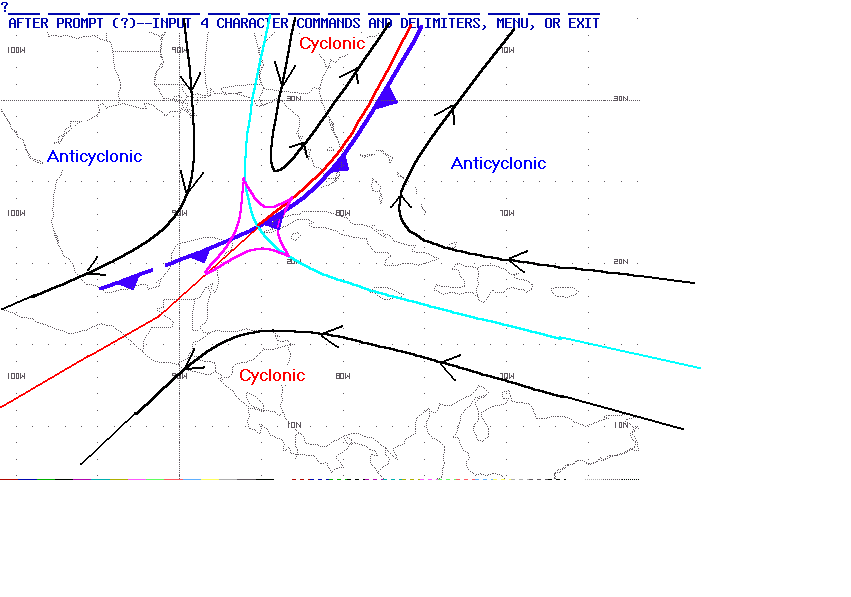

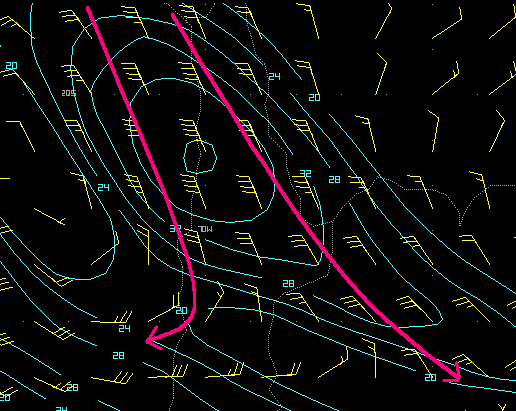

Streamline analysis is a subjective technique,
and it only shows directional diffluence and confluence. |
|
It does not show convergence/divergence |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|

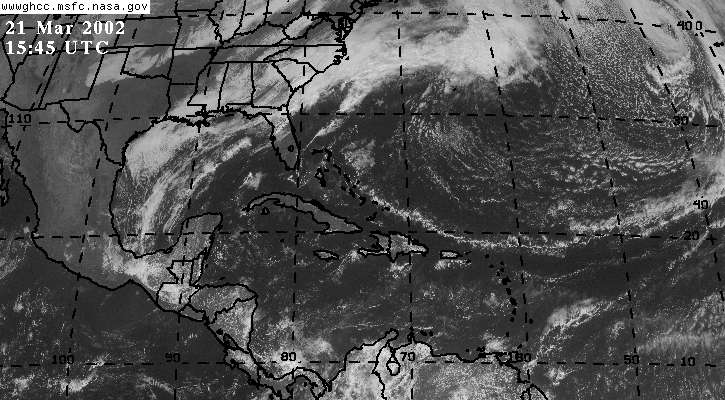

During the Winter Months |
|
Convective activity over the Gulf of Mexico and
gulf coast of Mexico tends to be capped below 500 hPa (20,000 ft) |
|
Evaluate upper dynamics for CONVERGENCE or
DIVERGENCE before forecasting thunderstorms. |
|
If models forecast post frontal northerlies of
25Kt or greater, and dew point temperature of 20C (68F) or greater over
southern Mexico. |
|
Forecast 12 hrs rainfall accumulation of at
least 2-4 inches. |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
