Slide 23 of 29
Notes:

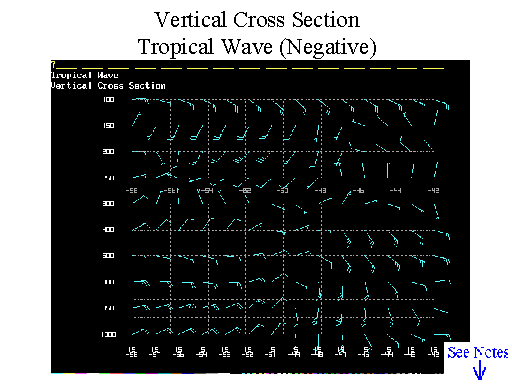

This is a cross section along 15N, traversing the axis of the tropical wave. Note that this wave extends to the middle levels of the troposphere. The axis is negatively tilted, as it extends from 15N 50W at 1000 hPa to 15N 47W at 500 hPa.. Which is from west-to-east with height.
